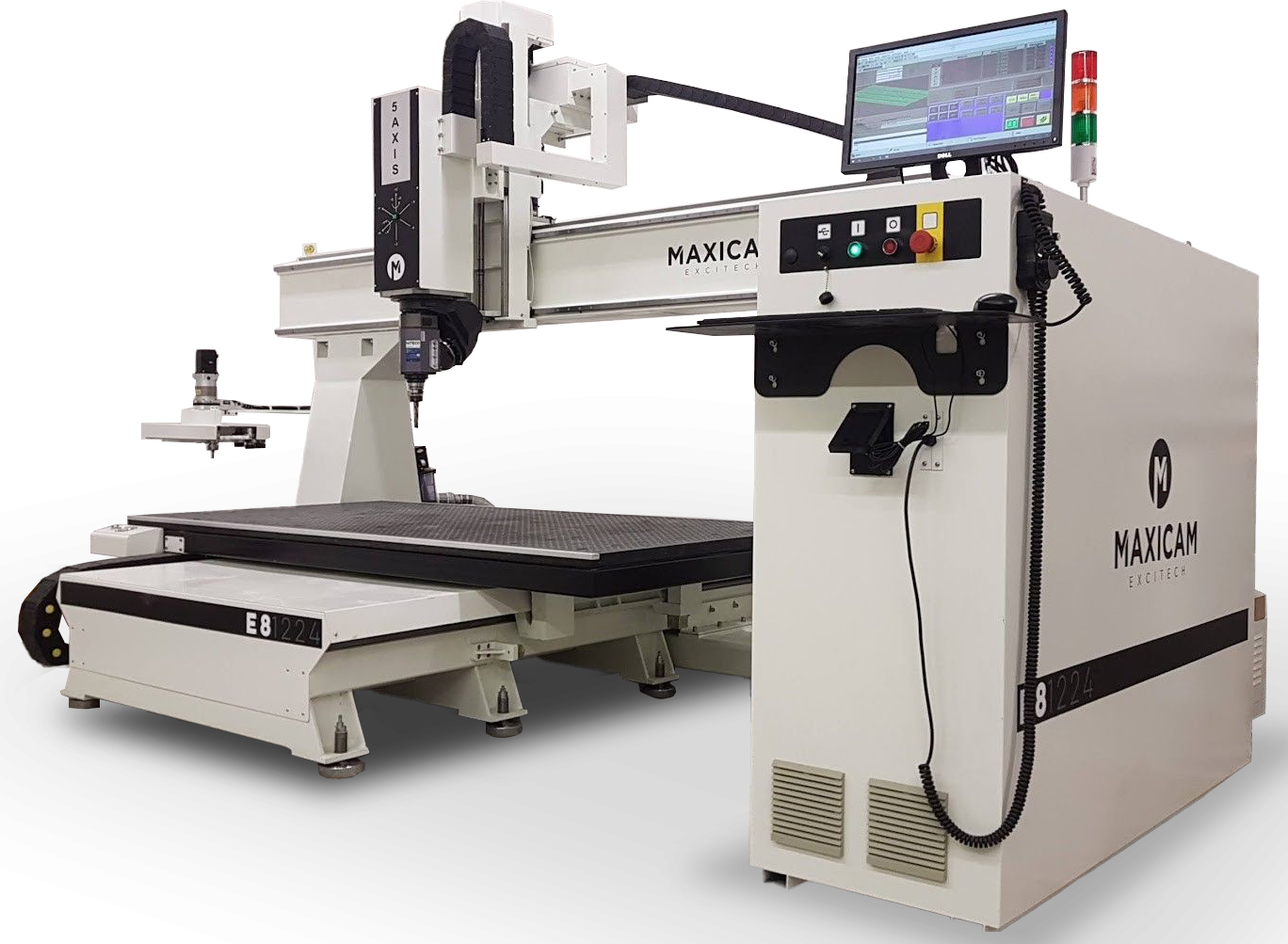

E8 5 Axis CNC: A state-of-the-art machining centre with full 5-axis interpolation. This machine has been designed to occupy a small footprint whilst still maintaining a good working envelope in full 5-axis (1200 x 2400 x 500mm). Moreover, equipped with a state-of-the-art Osai digital closed-loop servo NC control system, the machine is capable of machining at speeds up to 20m/min.
The Excitech E8 5-axis CNC machining centre, powered by Powell CNC, is meticulously designed to meet the most demanding processing requirements while maintaining an impressively compact footprint. Despite its smaller size, the E8 delivers exceptional industrial performance with a substantial working envelope of up to 1220 x 2440 x 500 mm. It demonstrates that sophisticated 5-axis engineering can be achieved without compromising spatial efficiency in the workshop.
Advanced Control System The E8 features the Osai digital closed-loop servo NC control system developed by Prima Electro, a leading Italian controls specialist. This technology enables remarkable machining speeds of up to 20 metres per minute, providing manufacturers with unprecedented precision and efficiency.
High-Performance Spindle Equipped with a 10 kW Hiteco HSK 63F spindle featuring a Prizmatic Head. This high-specification setup ensures superior cutting performance across diverse materials and complex 3D applications.
Precision Motion Control Digital Japanese Yaskawa servo motors are integrated through a Mechatrolink III digital closed-loop system for pinpoint accuracy and reliability. The machine utilizes high-quality helical rack and pinion mechanisms alongside linear guide blocks to ensure smooth and dynamic movement.
Automated Workflow A 16-position smart carousel with automatic tool changing and an integrated tool length measuring probe streamlines operational workflows. This allows for complex, multi-tool projects to be completed with minimal manual intervention.
Robust Vacuum System The E8 includes a double-layer high-flow vacuum matrix table powered by a robust Becker 250 cubic metre per hour vacuum pump. This provides secure and flexible workpiece holding for even the most intricate parts.
Durable Components High-quality Igus cables from Germany are housed in sealed dust-proof cable chains, underscoring the commitment to durability and long-term performance in industrial environments.
Efficiency enhances workflow and significantly reduces tool change downtime. Precision delivers consistent performance with exceptional accuracy for intricate designs. Durability extends equipment longevity through high-frequency air cooling technology. Versatility features adaptable clamping for a diverse range of materials and is compatible with virtually any CAD CAM software generating standard ISO G-Code.
Whether utilised for intricate prototyping, complex component manufacturing, or precision engineering, the Excitech E8 represents the perfect blend of compact design, technological innovation, and uncompromising performance.
If your production requirements involve larger workpieces or deeper 3D machining, Powell CNC provides the same industrial precision across a variety of scales.
Excitech E9 5-Axis CNC Machining Centre Designed specifically for manufacturers requiring significant vertical clearance. The E9 is the ideal solution for staircase manufacturing and deep mould production, featuring a high clearance gantry and Z-axis travel of up to 1300 mm. View Excitech E9 Specifications
Excitech E10 5-Axis CNC Machining Centre Our flagship large format solution for aerospace, marine, and automotive pattern making. The E10 offers an expansive working envelope of up to 6000 x 3000 x 2000 mm and features a massive 1.5 tonne cast iron T-slot table for unparalleled stability. View Excitech E10 Specifications
| Feature | Excitech E8 | Excitech E9 | Excitech E10 |
| Primary Use | Joinery and Prototyping | Deep Moulds and Stairs | Large Patterns and Marine |
| Z-Axis Travel | 500 mm | 1000 mm to 1300 mm | Up to 2000 mm |
| Servo System | Japanese Yaskawa | Japanese Yaskawa | Japanese Yaskawa |
| Controller | Italian OSAI Digital | Italian OSAI Digital | Italian OSAI Digital |
| ITEM | DESCRIPTION | E8-1212 | E8-1224 | E8-1212 2T |
|---|---|---|---|---|
| WORKING AREA | X | 1220 mm | 1220 mm | 1220 mm |
| Y | 1220 mm | 2440 mm | 2440 mm | |
| Z | 500mm | |||
| A | /+100°/- 40° | |||
| C | ±220° | |||
| ACCURACY | WORKING ACCURACY XYZ | 0.05 mm | ||
| WORKING ACCURACY AC | 0.2 mm | |||
| REPOSITIONING | 0.05/500 mm | |||
| STRUCTURE | MOVING TABLE | VACUUM MATRIX/PHENOLIC | ||
| SPEED | TRANSMISSION | HELICAL RACK XY, BALLSCREW Z | ||
| RAPID XY | 50000 mm/min | |||
| RAPID Z | 15000 mm/Min | |||
| MAX FEEDRATE | 25000 mm/min | |||
| SPINDLE | SPINDLE TYPE | HSD 7.5kW/HITECO 8kW | ||
| SPINDLE SPEED | 3000-24000 RPM | |||
| COOLING | LIQUID COOLED | |||
| DRIVE | BALL SCREW/RACK AND PINION | |||
| MOTOR | YASKAWA | SERVO | ||
| NC CONTROLLER | OSAI OPEN | DIGITAL CLOSED LOOP | ||
| COMMAND CODE | ISO G-CODE | |||
| ELECTRICAL | 3-PHASE 400V | 1 X 32A MACHINE MAIN | ||
| COMPRESSED AIR | CLEAN & DRY | 8CFM @ 7BAR | ||
| TOOL INTERFACE | HSK 63F | |||
| ATC | ROTARY | 8-16 POSITIONS | ||
The E8 5-axis CNC router, in addition to its advanced features, comes equipped with a 10kw Hiteco 5-axis spindle with a Prizmatic Head.
The latest generation OSAI digital closed-loop servo NC control system, developed by the leading Italian controls specialist Prima Electro, is featured in the E8 5-axis CNC router. This advanced system is capable of machining at speeds up to 20m/min.
Closed-loop servo control via Mechatrolink III, furthermore, ensures pinpoint accuracy and reliability through digital drivers and high-torque Yaskawa servo motors.
Powell CNC by Maxicam/Exitech 5 axis routers are compatible with almost all enterprise level 5 axis CAD/CAM Software.
