Full-specification edgebanding performance engineered for smaller workshops seeking maximum capability with minimum footprint. These machines deliver industrial-grade precision and finishing quality without compromise, and can be equipped with corner rounding for complete edge treatment. Competitively priced to make professional-level edgebanding accessible to growing operations.

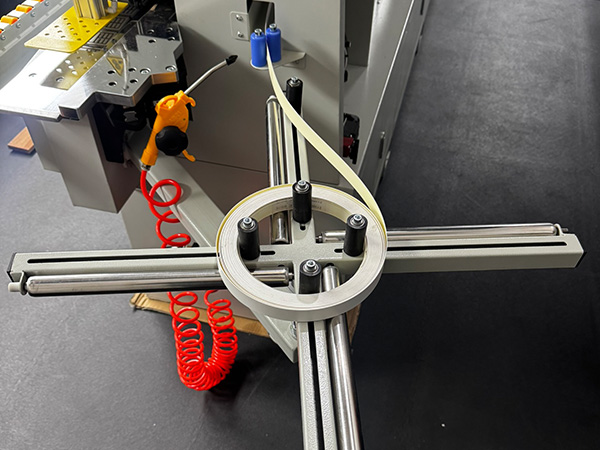

The PowlTech G560-Plus and G564-Plus represent a new generation of compact edge banding solutions designed for woodworking manufacturers seeking efficiency without sacrificing quality. Built on a remarkably small footprint, both machines deliver professional-grade performance for processing coiled edge material from 0.4-2mm thickness on workpieces up to 43mm thick—making them ideal for small to mid-sized production facilities with space constraints.

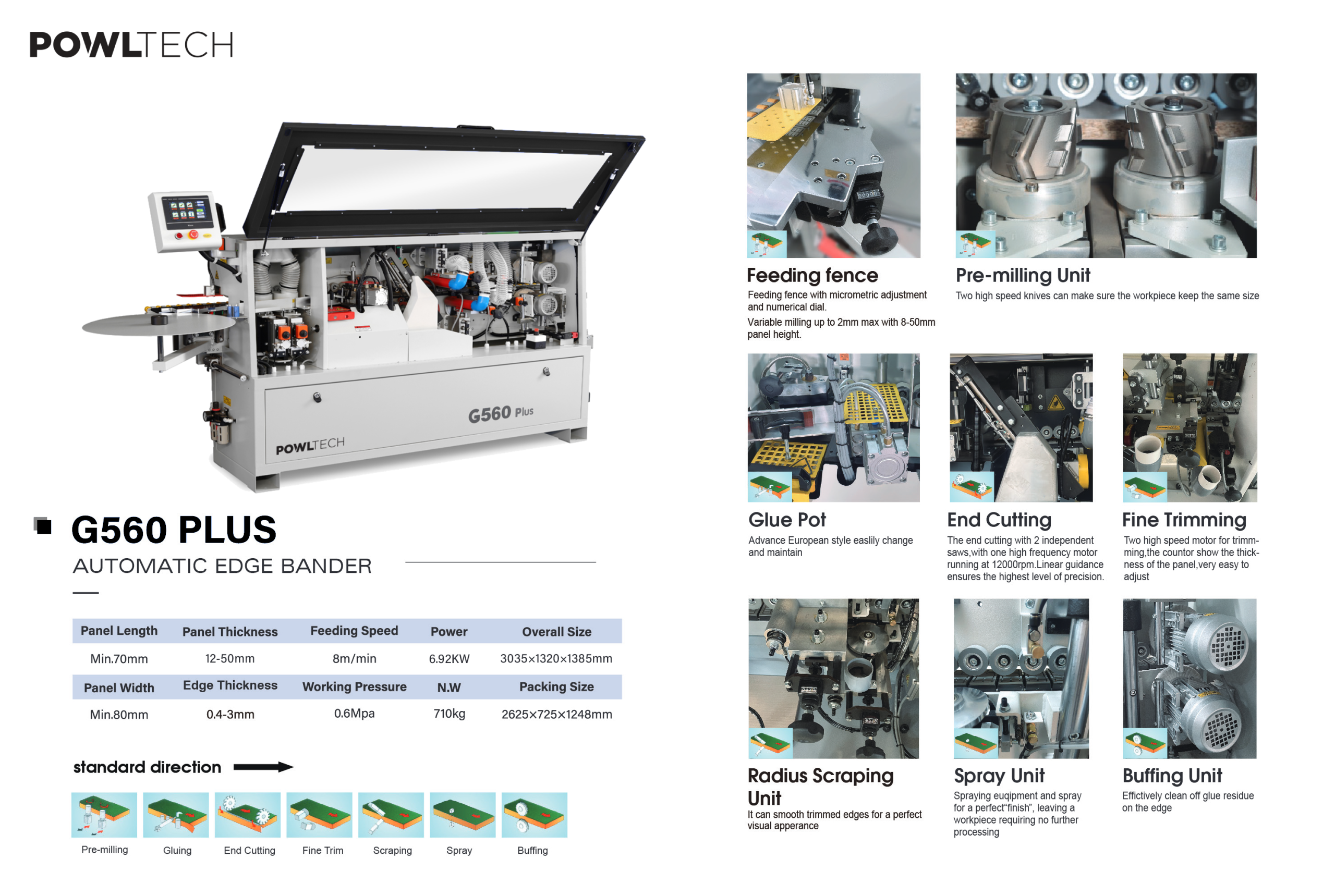

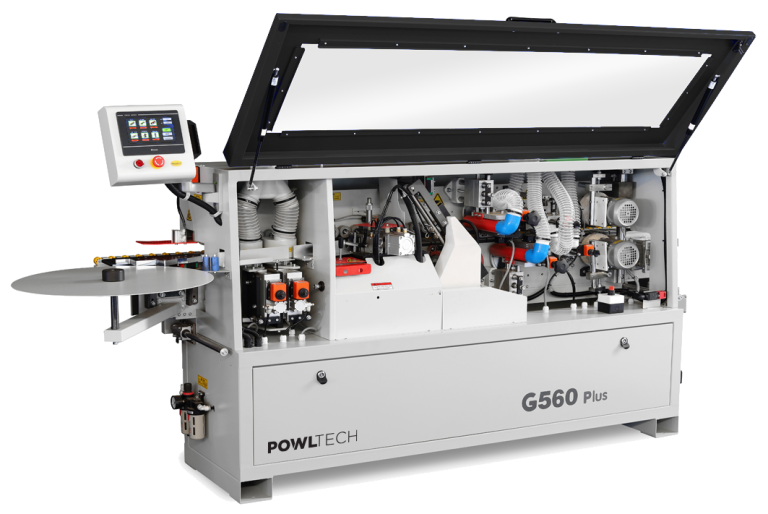

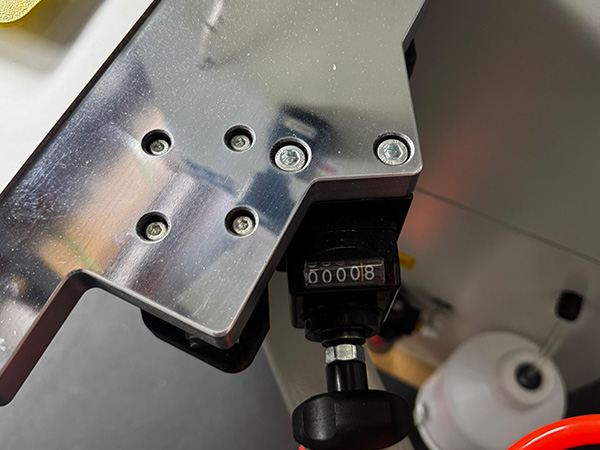

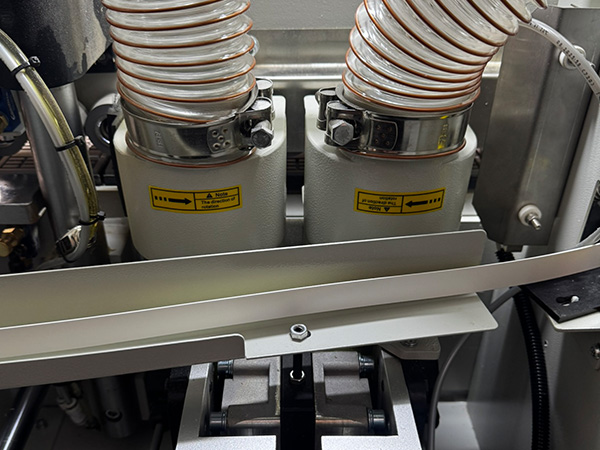

Pre-Milling System The G560 Plus provides comprehensive edge banding capabilities including pre-milling with counter-rotating diamond-tipped spindle heads that ensure perfectly straight, glue-ready edges.

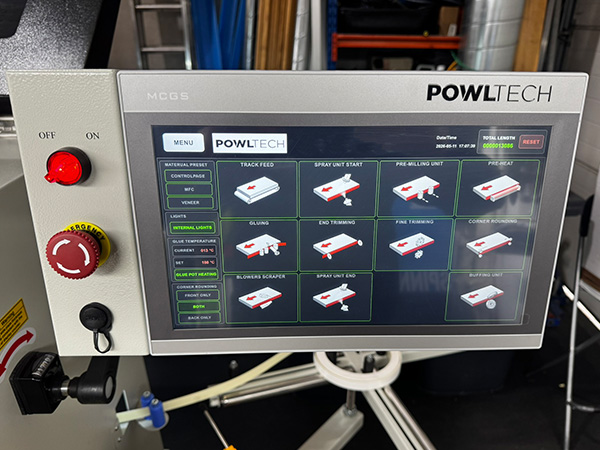

Intuitive Control & Quick Setup Its intuitive 10-inch touchscreen control panel simplifies operation with clear unit representations and error messaging, while the rapid 15-minute heat-up glue pot system minimizes setup time.

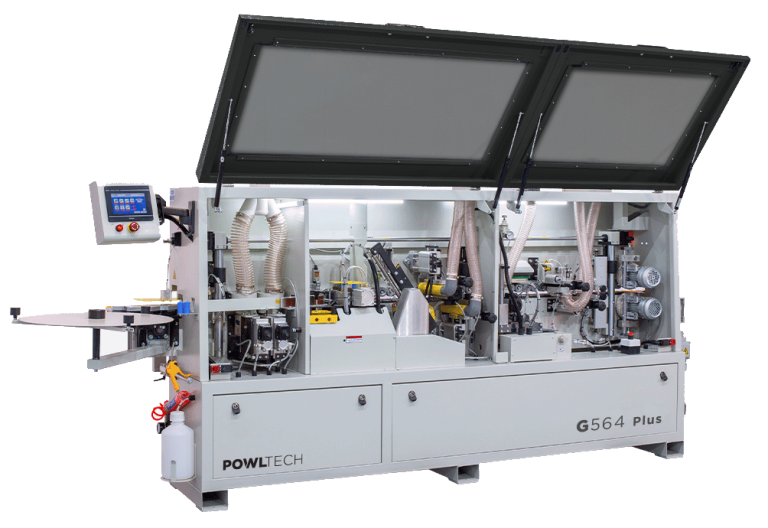

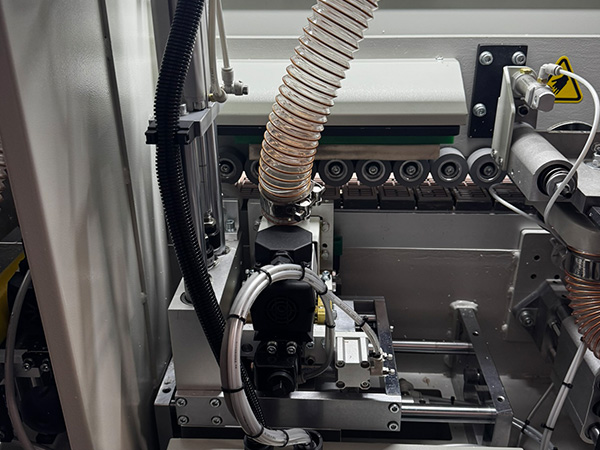

Full Corner Rounding Technology The G564 Plus builds on this foundation with the addition of full corner rounding technology – featuring top and bottom edge rounding with a high-frequency motor running at 12,000rpm. This enhancement delivers superior finish aesthetics and eliminates the need for manual post-processing.

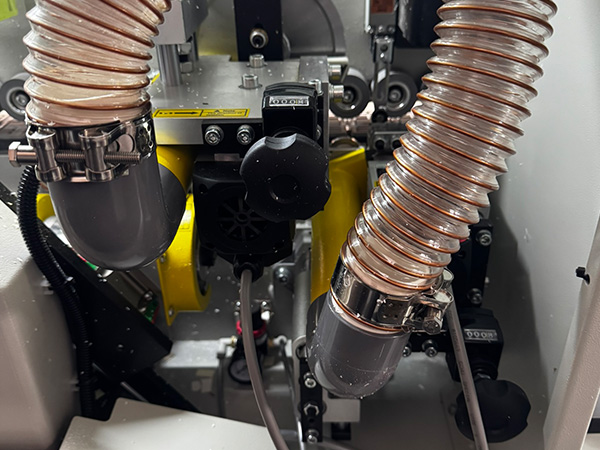

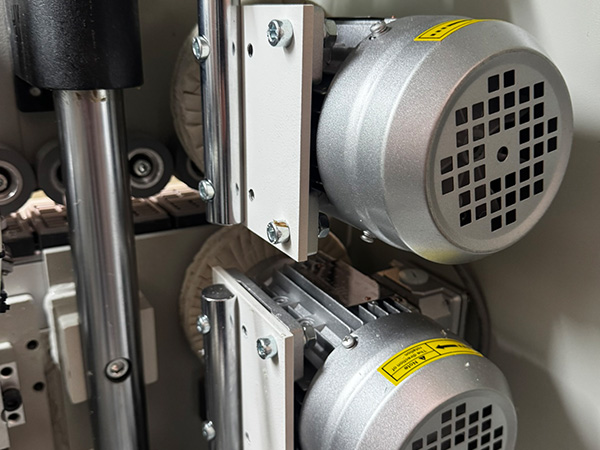

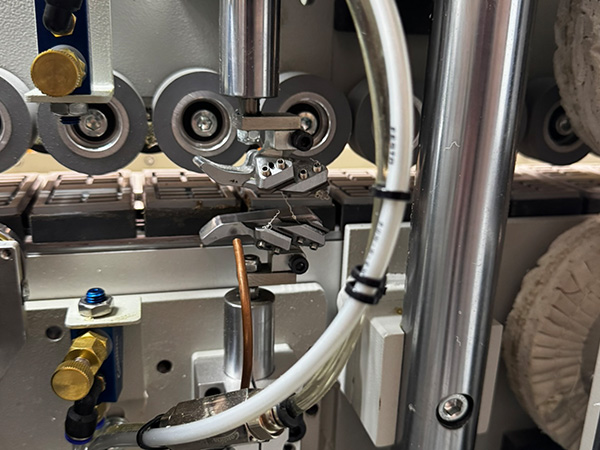

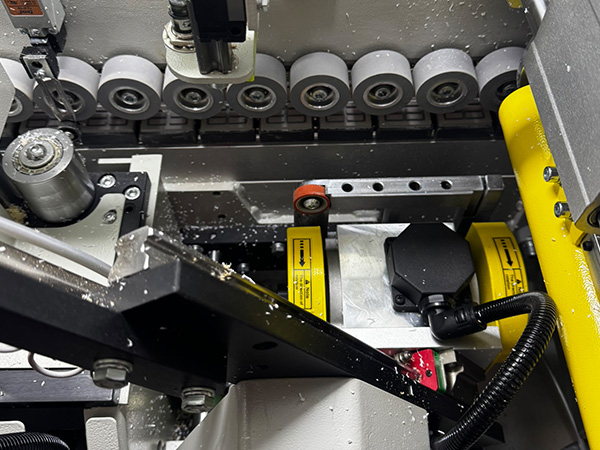

Dual Trimming Units Both models feature independent end-trimming and fine-trimming units with dual high-frequency motors, producing precise 2mm radius finishes. The fine scraping and buffing units remove trimming remnants and glue residue, delivering consistently smooth, professional finishes.

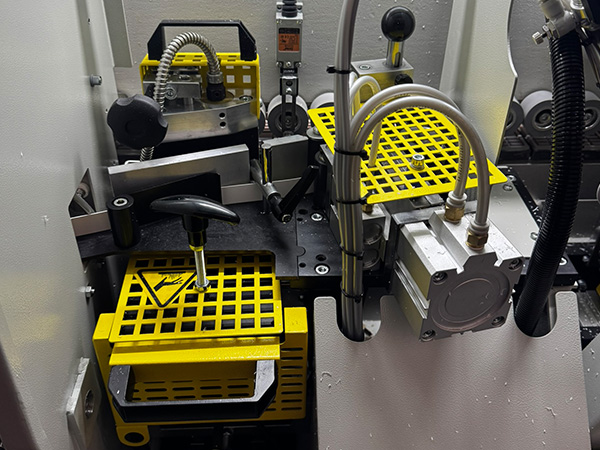

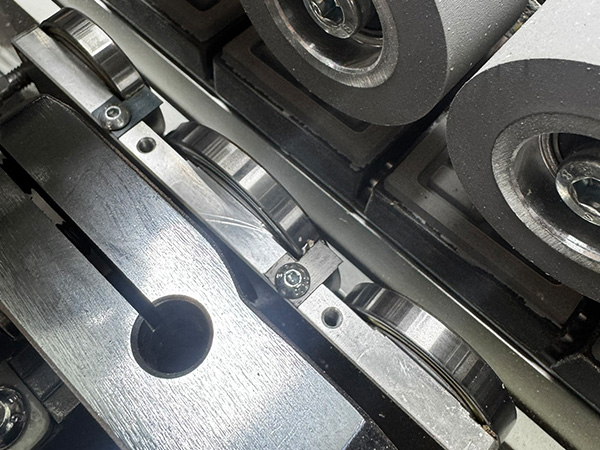

Quality Control Features Pressure roller systems with adjustable controls prevent glue smearing and tape deformation, while linear guidance across all trimming units ensures absolute precision. Quick-change glue pot systems and Teflon-coated components simplify maintenance and reduce downtime.
| G-560 Plus | G-564 Plus | |
|---|---|---|

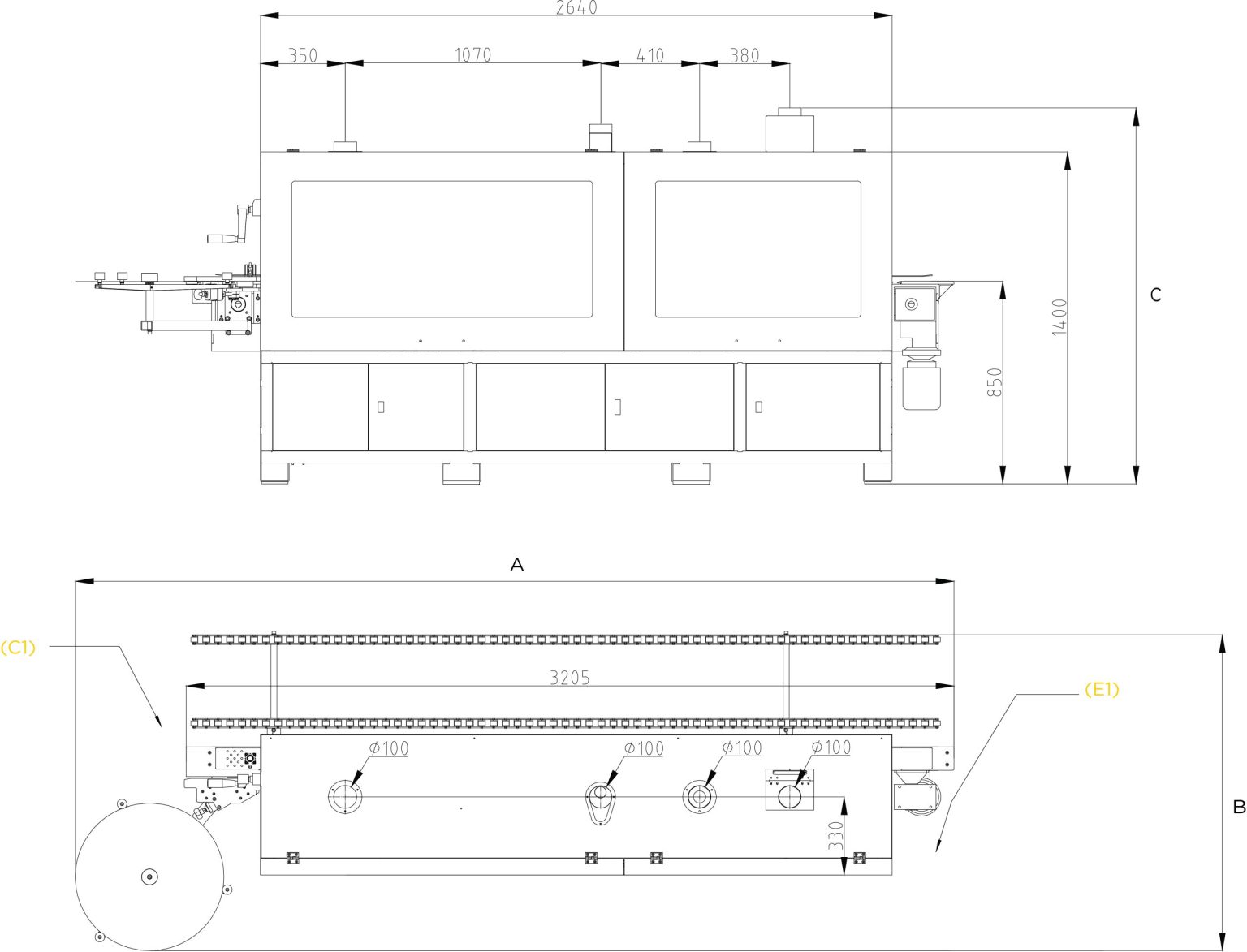

| Overall Size – L*D*H | 3035*1320*1385mm | 3660*1320*1585mm |
| Min Panel Length | 70mm | |
| Min Panel Width | 80mm | |
| Panel Thickness | 12-50mm | |
| Edge Thickness | 0.4-3mm | |
| Pre-heat via infra-red baking lamp | Yes | |
| Quick change Teflon coated glue pot | Yes | |
| Spray Release Agent | No | Yes |
| Adjustable pressure rollers | Yes | |
| Dual motor end trimming unit | Yes | |
| Nesting machine suitable – will not be effected by features cut on CNC | Yes | |
| Dual fine trimming with 2mm radius | Yes | |
| Full Corner Rounding | No | Yes |

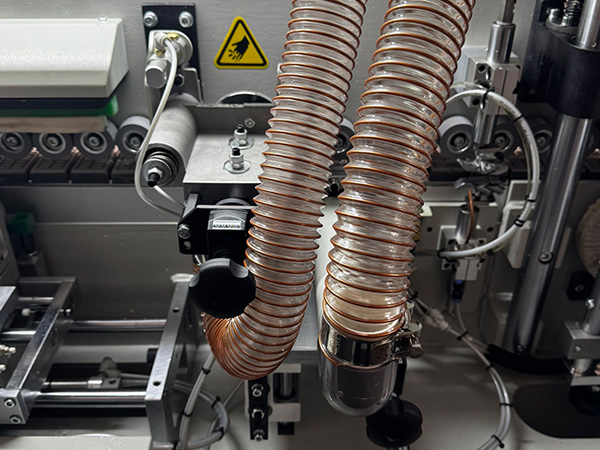

| Radius Scraping Unit | Yes | |

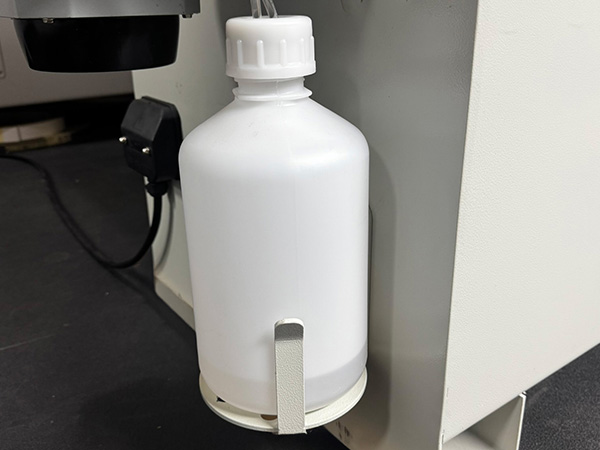

| Cleaning Spray Unit | Yes | |
| Buffing Unit | Yes | |
Despite their compact design, the G560 Plus and G564 Plus deliver comprehensive edge banding functionality previously found only in larger machines, making them perfect for workshops where floor space is at a premium but production quality cannot be compromised.

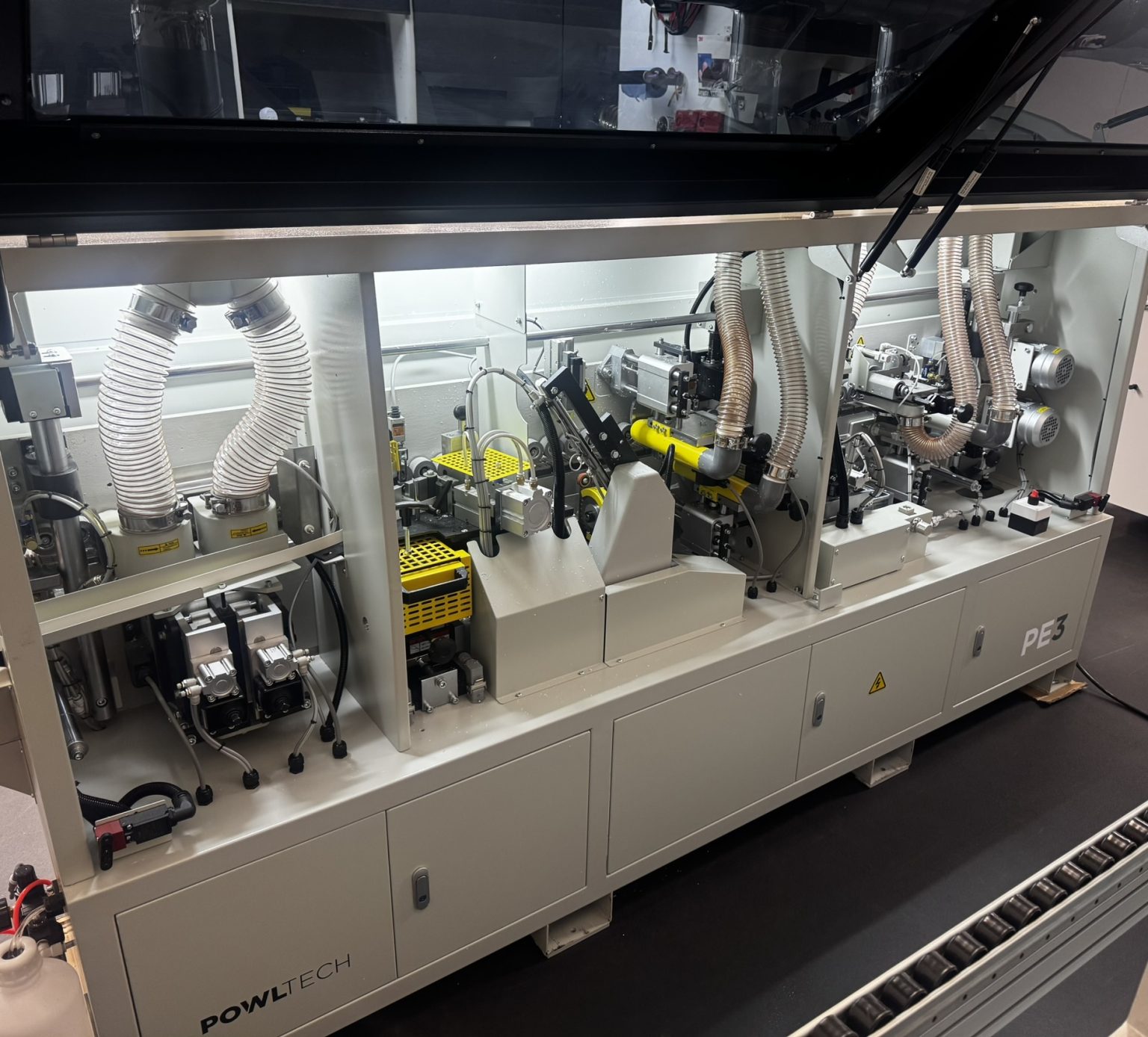

From pre-milling through end-trimming, fine-trimming, scraping, and buffing – both machines handle the entire edge processing sequence independently, reducing workpiece handling and ensuring consistent, professional results every time.
The 15-minute heat-up glue pot, intuitive 10-inch touchscreen control, and quick-change component system minimize downtime between jobs, while clear error messaging and visual status displays keep operators informed and productive throughout the day.
